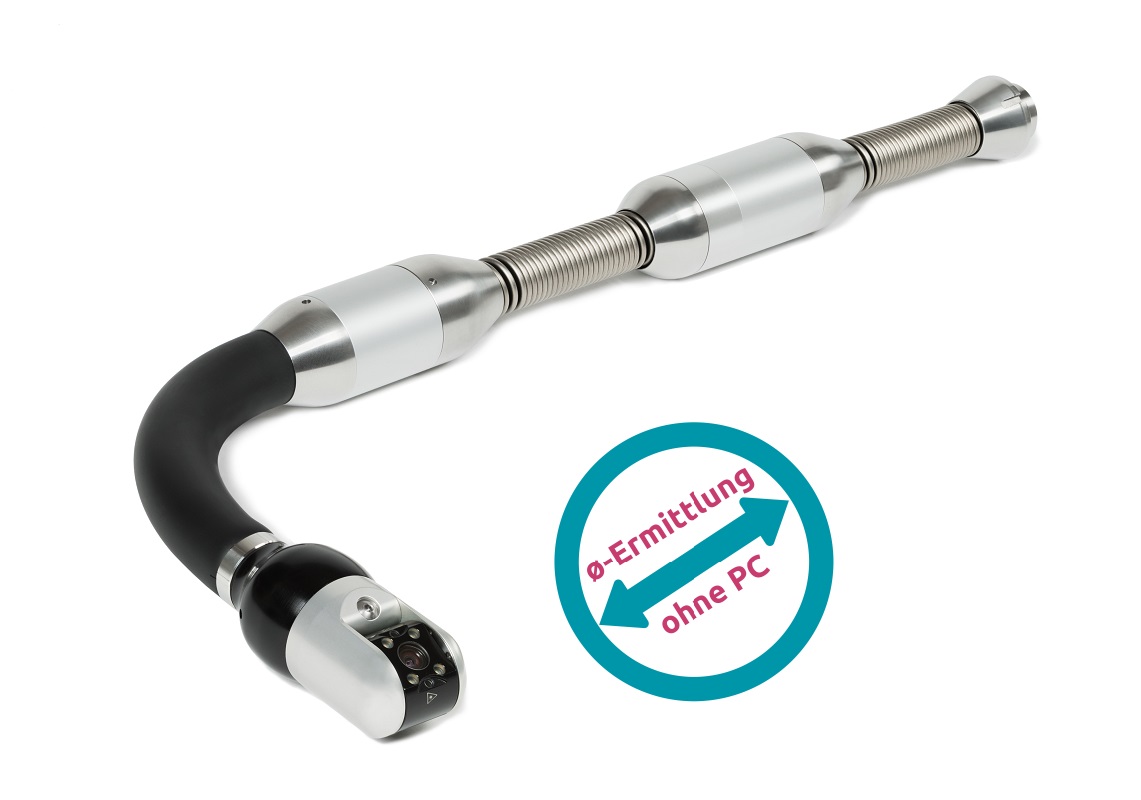

RiFlexio 2

For many years, the RiFlexio 2 has been the smallest bendable pan & rotate camera with a free field of view. It manages even the most difficult branches in demanding pipe networks and is therefore your versatile allrounder.

  • Turn off able camera
  • Digital
  • DN 80 - DN 200

description

  • Pan & rotate camera ø 56 mm
  • 45° bendable from DN 80
  • 87° bendable from DN 100
  • Determination of diameter without PC from DN 80 to DN 200
  • Turn off able 45° from DN 80
  • Turn off able 87° from DN 100
  • Pan angle ± 120 °
  • Pan angle incl. viewing range ±148°
  • Endless rotation
  • High-resolution colour camera module
  • Automatic aperture control
  • Automatic self leveling picture
  • Camera head zero setting / Home position
  • Pan axis supported on both sides
  • Electric focusing with storable focus for near and far range
  • High-performance LED light
  • Protective glass combination made of sapphire and special plastics
  • Pressure sensor with pressure drop alarm function
  • Push guide from DN 110
  • Two-point laser

Suitable systems

RiCubio® M

  • Max. length of cable: 60 m
  • DN 70 - DN 300

RiCubio® Fluid

  • Max. length of cable: 120 m
  • DN 50 - DN 300
Go back

Do you have any question? We are here for you.

Just give us a call or send us an e-mail.
We will be happy to help you!

+49 (0) 8374 - 240 60 - 0

This could also interest you

RI 56.2 SKS

  • Pan & rotate camera
  • Digital
  • DN 75 - DN 250

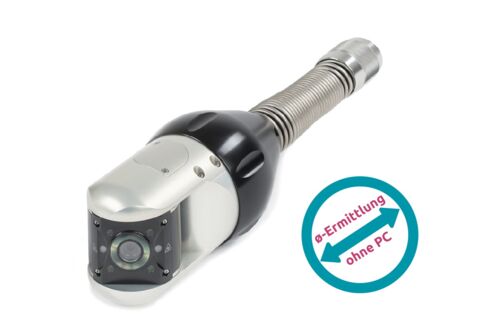

RI 78 SKS
