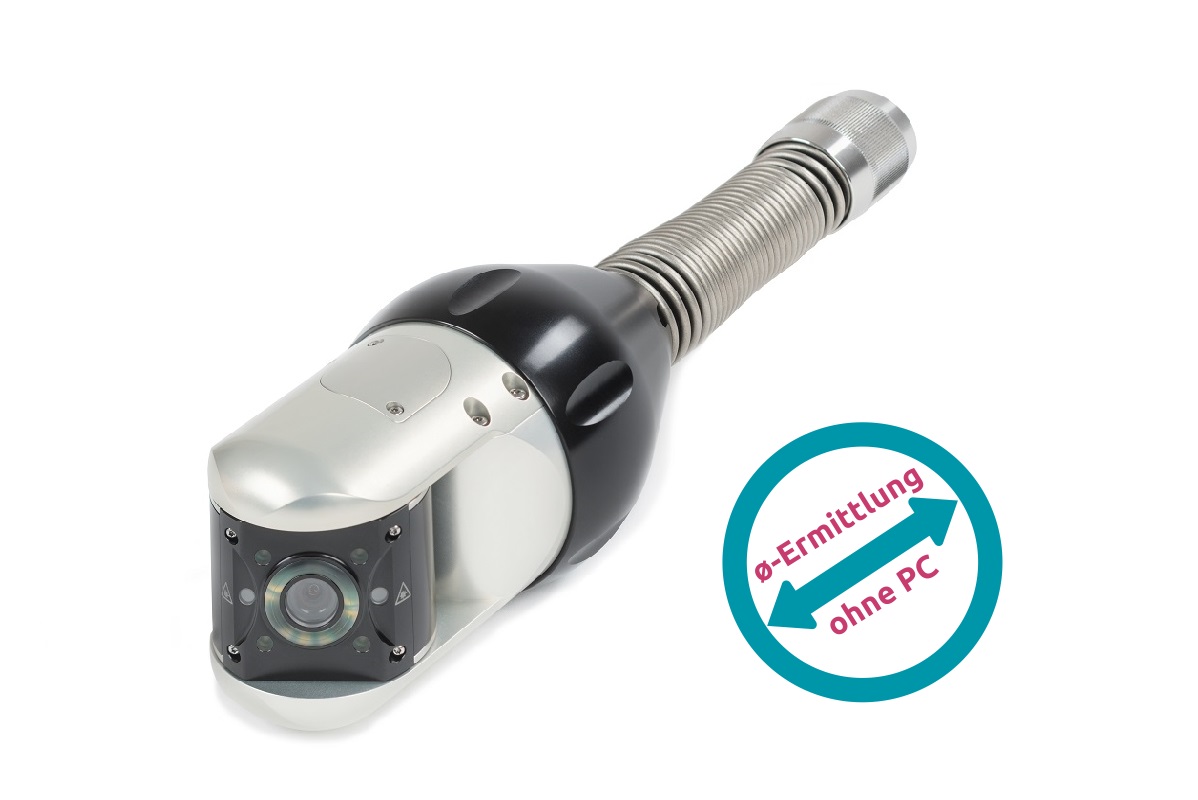

RI 78 SKS

For all those who are looking for a pan & tilt camera for pushing or flushing within a larger diameter range.

  • Pan & tilt camera
  • Digital
  • DN 100 - DN 300

description

  • Pan & tilt camera ø 78 mm
  • 87° bendable from DN 110
  • Determination of diameter from DN 100 to DN 300 without PC
  • Pan angle: ±130°
  • Pan angle incl. viewing range ±158°
  • Endless rotation
  • Slip clutch in rotation axis
  • High-resolution colour camera module
  • Automatic aperture control
  • Automatic self leveling picture (can be disabled)
  • Camera head zero setting / Home position
  • Pan axis supported on both sides
  • Electric focusing with storable focus for near and far range
  • High-performance LED light with separate light control for close-up and remote areas
  • Protective glass combination made of sapphire and special plastics
  • Pressure sensor with pressure drop alarm function
  • Two-point laser

Suitable systems

RiCubio® M

  • Max. length of cable: 60 m
  • DN 70 - DN 300

RiCubio® Fluid

  • Max. length of cable: 120 m
  • DN 50 - DN 300
