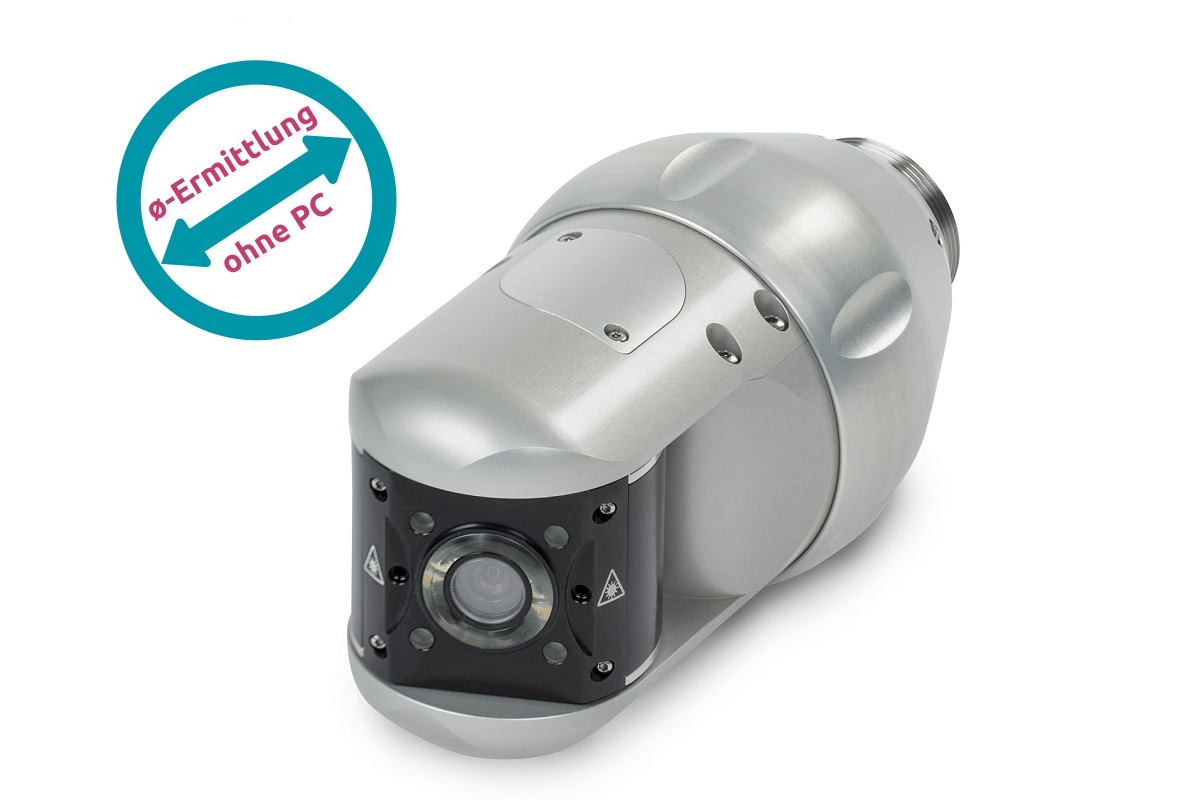

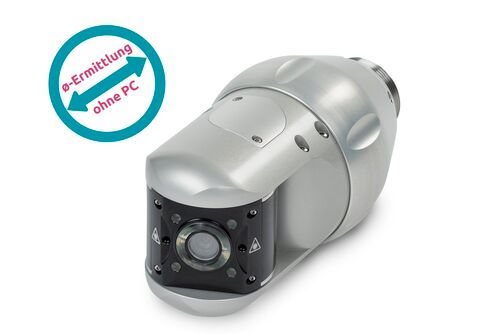

RI 78 FW

If you are looking for a camera head that fits the widest possible range of crawler applications - here it is: The RI 78 FW universal camera head combines the advantages of a pan and rotate camera with our crawlers.

  • Pan & rotate camera
  • Digital
  • DN 100 - DN 1200


  • (in conjunction with back eye camera from DN 300)
  • Pan & rotate camera ø 78 mm
  • Determination of diameter without PC from DN 100 to DN 600
  • Pan angle: ±130°
  • Pan angle incl. viewing range ±158°
  • Endless rotation
  • Slip clutch in rotation axis
  • High-resolution colour camera module
  • Automatic aperture control
  • Automatic self leveling picture (can be disabled)
  • Camera head zero setting with selectable remote focusing
  • Pan axis supported on both sides
  • Electric focusing with storable focus for near and far range
  • High-performance LED light with separate light control for close-up and remote areas
  • Protective glass combination made of sapphire and special plastics
  • Pressure sensor with pressure drop alarm function
  • Two-point laser
  • Macros for moving along sleeves
  • 90° pan position left/right
  • The camera RI 78 FW can also be used as a push camera together with a 19” control unit.

Suitable systems

Do you have any question? We are here for you.

Just give us a call or send us an e-mail.
We will be happy to help you!

+49 (0) 8374 - 240 60 - 0

This could also interest you

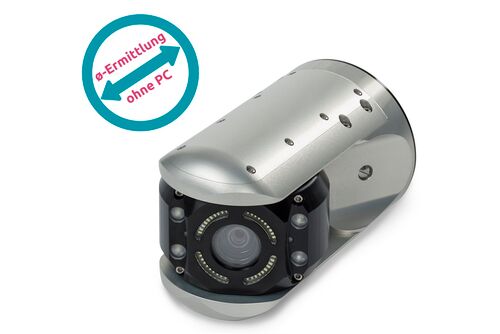

RI 106 FW
